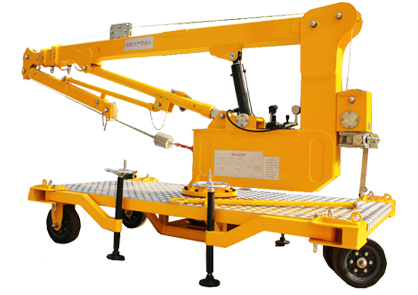

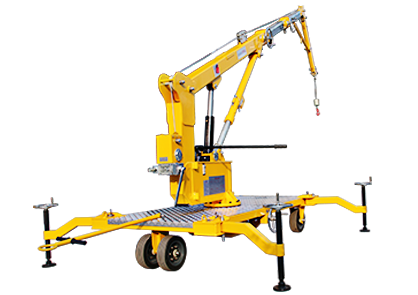

KBS-500 manual crane

MODEL：KBS-500

SIZE：3750×1540mm×1980mm

MAX WORKING RADIUS：2.5m

MAX OVERLAND LIFT：8m

WORKING ENVIRONMENT：A narrow space

LEG FORM：

DRIVING MODE：Wheeled traction walking

INTRODUCTION：

Type KBS - 500 hook height from the ground 8.0 m 300 kg2. 5 m hook height from the ground 6.5 m 300 kg2. 1 m winding drum gear handwheel diameter (handle) 350 mm 166 mm diameter wire rope 6.2 mm20m reduction ratio (angular velocity) 23.34 rolling dev

FEATURE：

Offer consulting

kebucrane@163.com

PRODUCT INTRODUCTION

Manual crane for wheeled traction walking, ups and downs with hydraulic transmission, support leg, winding, stretching and rotating devices are all mechanical transmission. The machine adopts UG 3d, CAE finite element analysis and machine calculation and other advanced design methods and optimization design concept, with the flexibility of the machine, easy to operate, compact structure, flexible operation, stable performance, reliable use, easy maintenance and other advantages.

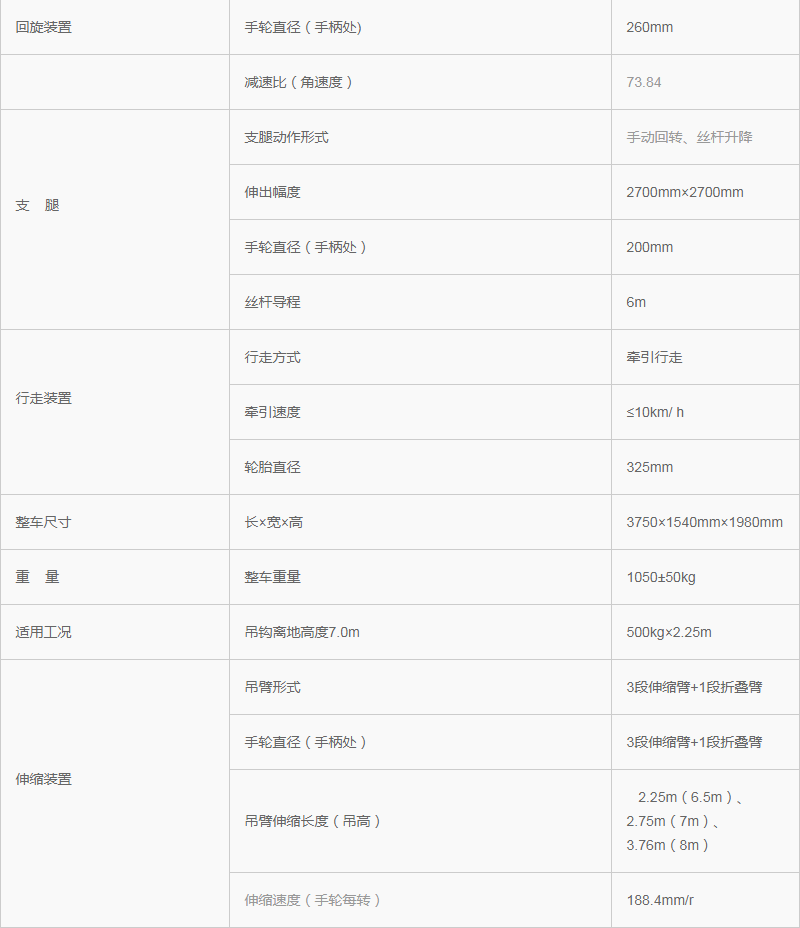

TECHNICAL PARAMETERS
