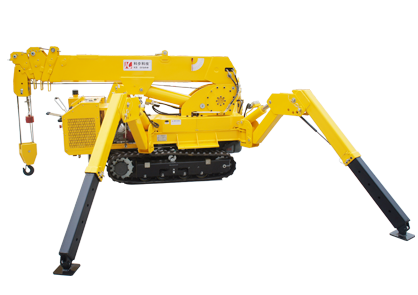

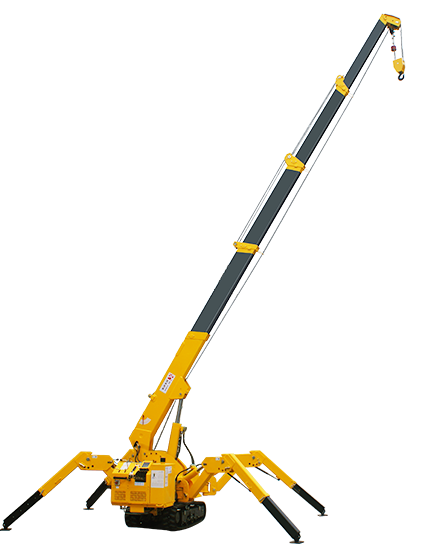

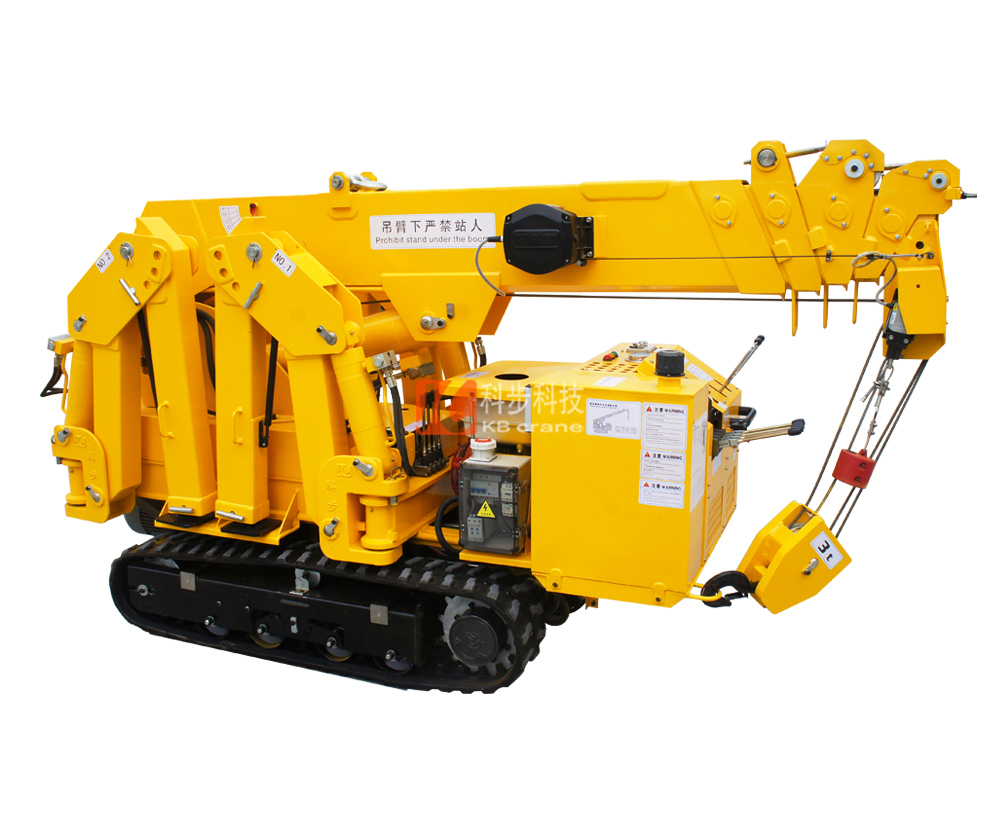

KB3.0 Spider Crane

MODEL:KB3.0

SIZE:3.0Tx1.3m

MAX WORKING RADIUS:8.3m

MAX OVERLAND LIFT:9.2m

MAX UNDERGROUND HEAD:8.92m

WORKING ENVIRONMENT:Narrow space/interior

LEG FORM:The first section is automatic, the second section is manual

DRIVING MODE:Hydraulic, track

INTRODUCTION:
KB3.0 micro crawler crane, widely used in electrical substation equipment maintenance and installation, mechanical chemical workshop equipment maintenance and installation, glass curtain wall and other small space occasions. At present, it has been w
FEATURE:
Compact body, hydraulic walking, safety design to prevent misoperation, adapt to rugged outdoor space, pentagon-type telescopic boom, remote control device energy-saving and durable, torque limiter, to prevent overload operation
Offer consulting

kebucrane@163.com

PRODUCT INTRODUCTION
KB3.0 micro crawler crane, widely used in electrical substation equipment maintenance and installation, mechanical chemical workshop equipment maintenance and installation, glass curtain wall and other small space occasions. At present, it has been widely selected by state grid and China southern power grid, and has been used in Shanghai world expo, general motors, lanzhou petrochemical, tianxin petrochemical, wuhan tianling and Beijing netcom building construction project, etc. The products have been exported to the United States, Australia, Canada, the United Kingdom, Brazil, Vietnam, uae and other countries.

In addition to the rated load of the crane there is a certain amount of surplus, can work for a long time.

TECHNICAL PARAMETERS


 Specifications
Model KB3.0
Specification 2.95Txl.3m
Maximum Working Radius 8.3mx0.14T
Maximum Ground Lifting Height 9.2m
Maximum Underground Lifting Height
Winch Device Hook Speed 6.5m/min (4 fall)
Rope Type e7.7mm x45m
Telescopic System Boom Type Full automatic 5 section
Boom Length 2.56m-8.92 m
Up and Downs Boom Angle/Time 0° -75° /14sec
Slew System Slew Angle/Time 0° -360° (continuous) /40sec

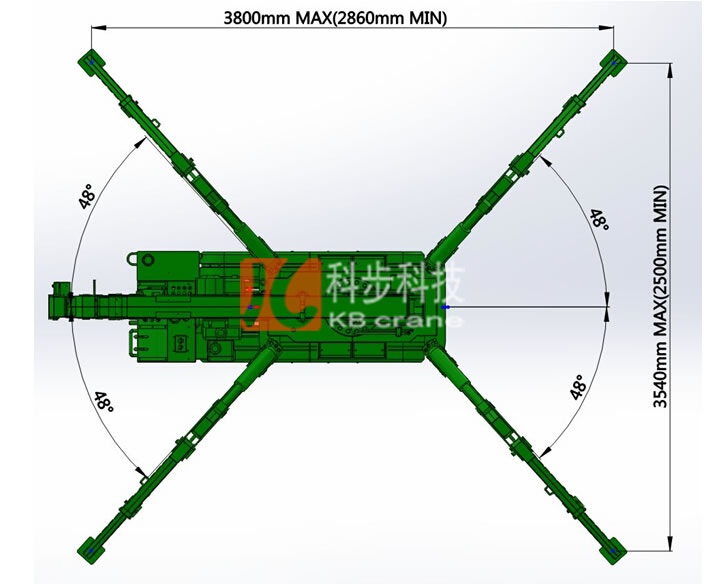

Outrigger Maximum Extended Dimensions  3900mm x 3750mm
Traction system Walking Way Hydraulic motor driven
Walking Speed 0-2.9km/h
Ground Length x Width x2 1010mmx200mmx2
Grade Ability 20°
Ground Pressure 51Kpa
Safety Devices Onekey levelingTorque limiterHeight limiterx Crane outrigger sensorx Alarm deviceEmergency button
System Voltage DC12V
Diesel Engine (Optional) Model 3TNV70
Displacement 0.854L
Maximum Output 10.3KW
Starting Method Electric starting
Fuel Tank Capacity 11L
Operating Temperature -5° C-40° C
Battery Capacity 12V 45Ah
Petrol Engine Model CH440
Displacement 429ml
Maximum Output 10.3kw
Starting Method Recoil start/Electric starting
Fuel Tank Capacity 7.4L
Operating Temperature -5° C-40° C
Battery Capacity 12V 45AH
Electric Motor Power Supply Voltage  (Standard) AC380v
Power 4KW
Remote Control Type BOX1.1  (Optional)
Operating range 100m
Water-proof Standards IP67
Dimension Length x Width x Height 2900mmx800mmx1580mm
Weight Vehicle Weight 2050Kg

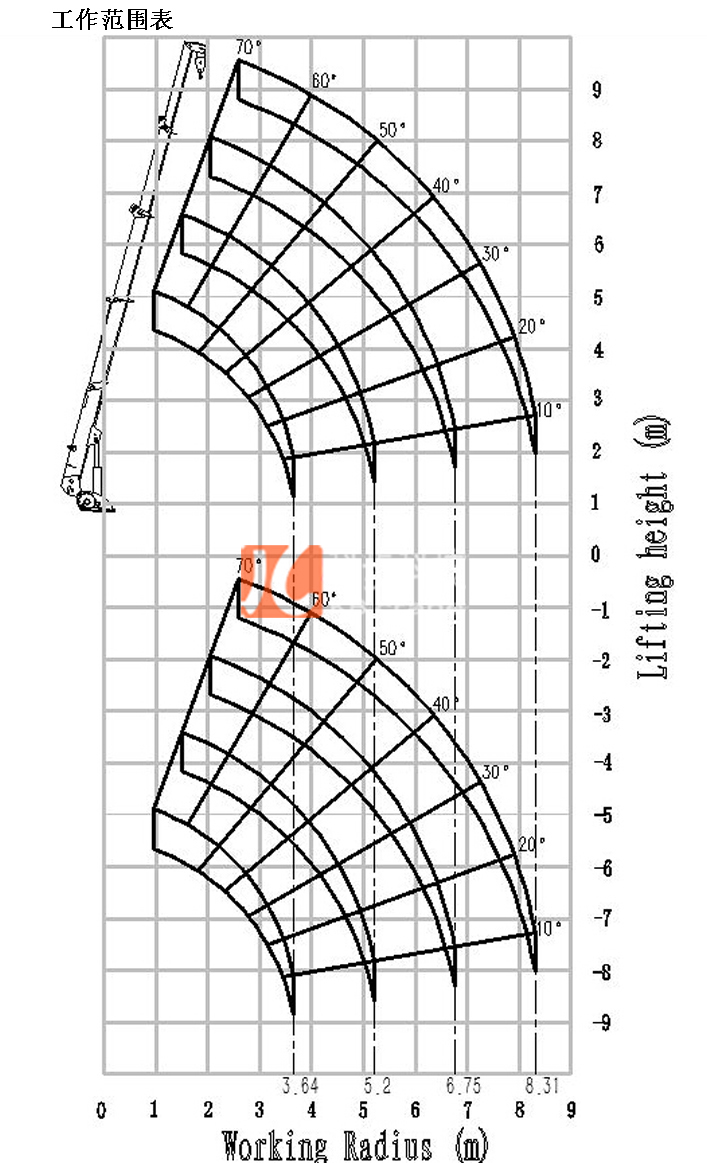

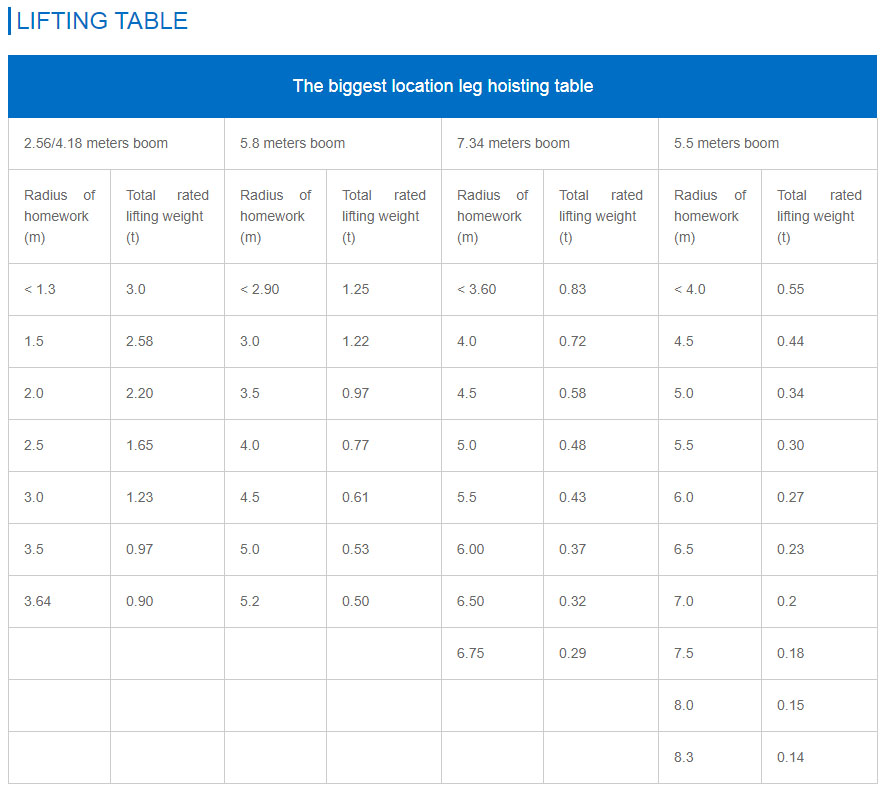

LIFTING TABLE

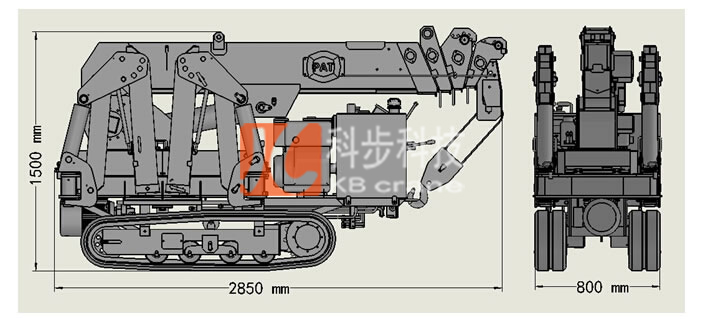

PRODUCT SCHEMATIC

CASE
Yangtze River International Conference Center

Yangtze River International Conference Center

LOCATION:nanjing

DATA:2021

MODEL:kb3.0

Nanjing Glass Curtain Wall Project

Nanjing Glass Curtain Wall Project

LOCATION:nanjing

DATA:2021

MODEL:kb3.0

State Grid provincial 110KV Substation

State Grid provincial 110KV Substation

LOCATION:xinzheng

DATA:2021年

MODEL:kb8.0

Zhengzhou Shifo Substation

Zhengzhou Shifo Substation

LOCATION:zhengzhou

DATA:2021年

MODEL:kb3.0

Yueyang Hucheng Substation

Yueyang Hucheng Substation

LOCATION:yueyang

DATA:2021年

MODEL:kb3.0

Equipment installation in scenic of Hangzhou

Equipment installation in scenic of Hangzhou

LOCATION:hangzhou

DATA:2021

MODEL:kbL3.0

Electric substation of Dongguan Chonghuan

Electric substation of Dongguan Chonghuan

LOCATION:Dongguan Chonghuan

DATA:2021

MODEL:kb8.0

Steel structure lifting works of workshop

Steel structure lifting works of workshop

LOCATION:zhengzhou

DATA:2021

MODEL:kb3.0

Yutong bus steel structure lifting works

Yutong bus steel structure lifting works

LOCATION:zhengzhou

DATA:2021

MODEL:kb5.0

OMI vinyl

OMI vinyl

LOCATION:an'hui

DATA:2020

MODEL:kb3.0
